MPAS unstructured grid data#
In this example, we demonstrate CE identification with unstructured-grid data from MPAS
and compare to the results using the regridded dataset.
import warnings
import cartopy
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import geopandas as gpd
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import xarray as xr
from matplotlib.tri import Triangulation
import tams
warnings.filterwarnings("ignore", category=cartopy.io.DownloadWarning)
%matplotlib inline
xr.set_options(display_expand_data=False)
Load data#
ds = tams.load_example_mpas_ug()
ds
<xarray.Dataset> Size: 138MB
Dimensions: (time: 127, cell: 133447)
Coordinates:
* time (time) datetime64[ns] 1kB 2006-09-08T12:00:00 ... 2006-09-13T18:...
lat (cell) float64 1MB ...
lon (cell) float64 1MB ...
Dimensions without coordinates: cell
Data variables:
tb (time, cell) float32 68MB nan nan nan nan ... 264.6 266.4 263.8

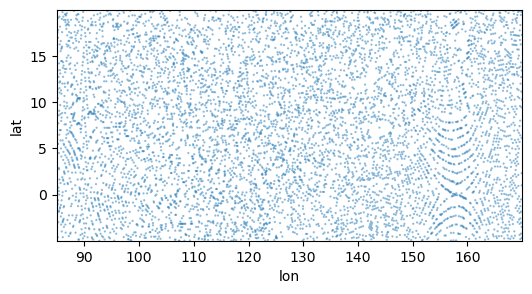

precip (time, cell) float32 68MB 0.0323 0.03974 0.0 0.1706 ... nan nan nanfig, ax = plt.subplots(figsize=(6, 3))
sel = ds.isel(cell=slice(None, None, 20))
ax.scatter(sel.lon, sel.lat, marker=".", s=10, alpha=0.5, edgecolors="none")
ax.set(xlabel="lon", ylabel="lat")
ax.autoscale(tight=True)

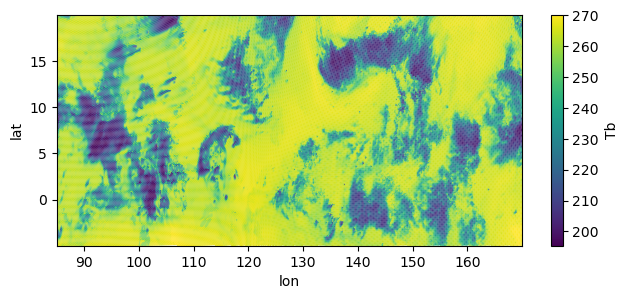

%%time
fig, ax = plt.subplots(figsize=(7.5, 3))
im = ax.scatter(ds.lon, ds.lat, c=ds.tb.isel(time=10), marker=".", s=3, edgecolors="none")
fig.colorbar(im, ax=ax, label="Tb")
ax.autoscale(tight=True)
ax.set(xlabel="lon", ylabel="lat")
CPU times: user 17.3 ms, sys: 795 μs, total: 18.1 ms
Wall time: 17.8 ms
[Text(0.5, 0, 'lon'), Text(0, 0.5, 'lat')]

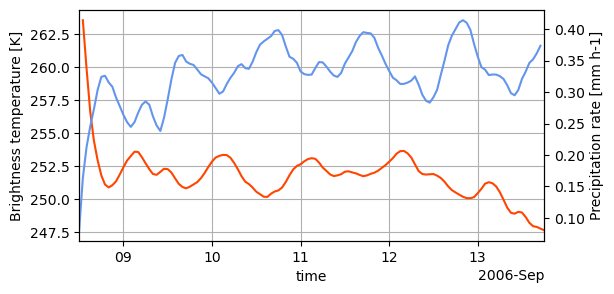

ts = ds.mean("cell", keep_attrs=True)
fig, ax = plt.subplots(figsize=(6, 3))
ax2 = ax.twinx()
ts.tb.plot(ax=ax, c="orangered")
ts.precip.plot(ax=ax2, c="cornflowerblue")
ax.autoscale(axis="x", tight=True)
ax.grid(True)
Identify CEs#
%%time
itime = 10
stime = pd.Timestamp(ds.time.values[itime]).strftime(r"%Y-%m-%d_%H")
print(stime)
x = ds.lon
y = ds.lat
tri = Triangulation(x, y)
2006-09-08_22
CPU times: user 844 ms, sys: 471 μs, total: 844 ms
Wall time: 849 ms
%%time
# Passing the triangulation in is not required but makes it faster
shapes = tams.core._contours_to_gdf(tams.contours(ds.tb.isel(time=itime), value=235, triangulation=tri));
CPU times: user 141 ms, sys: 1.77 ms, total: 142 ms
Wall time: 145 ms
%%time
# `tams.identify` does the above but also for the core threshold and does size filtering by default
cs_ug, cs_ug_core = list(zip(*tams.identify(ds.tb.isel(time=itime))))[0]
CPU times: user 1.16 s, sys: 122 ms, total: 1.28 s
Wall time: 1.28 s

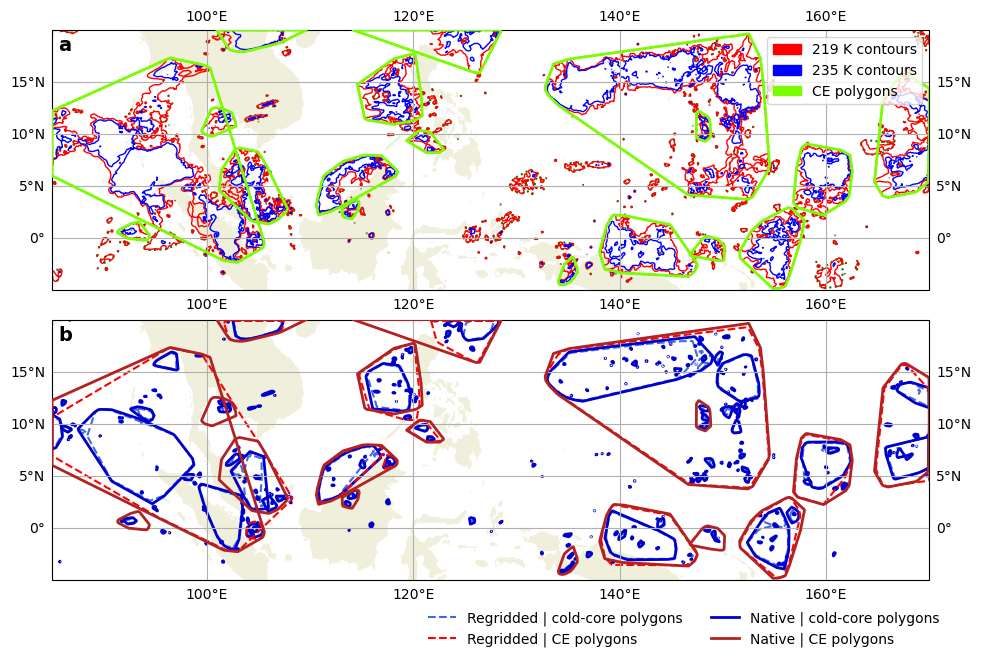

%%time
tran = ccrs.PlateCarree()
proj = ccrs.PlateCarree() # near equator
fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(10, 6), subplot_kw=dict(projection=proj), constrained_layout=True)
ax = ax1
ax.add_feature(cfeature.LAND)
tcs = ax.tricontour(tri, ds.tb.isel(time=itime), levels=[235], colors="red", linewidths=1, transform=tran)
tcs_core = ax.tricontour(tri, ds.tb.isel(time=itime), levels=[219], colors="blue", linewidths=1, transform=tran)
shapes.plot(fc="none", ec="green", lw=1.5, ls=":", ax=ax, transform=tran) # not size-filtered
cs_ug.plot(fc="none", ec="lawngreen", lw=2, ax=ax, zorder=3, transform=tran)
ax.gridlines(draw_labels=True)
legend_handles = [
mpl.patches.Patch(color="red", label="219 K contours"),
mpl.patches.Patch(color="blue", label="235 K contours"),
mpl.patches.Patch(color="lawngreen", label="CE polygons"),
]
ax.legend(handles=legend_handles, loc="upper right")
ax = ax2
ds_rg = tams.load_example_mpas().sel(lat=slice(None, 20)) # same lat upper bound as in the ug data
ax.add_feature(cfeature.LAND)
cs_rg, cs_rg_core = list(zip(*tams.identify(ds_rg.tb.isel(time=itime))))[0]
a = cs_rg_core.plot(fc="none", ec="royalblue", lw=1.5, ls="--", transform=tran, ax=ax)
cs_ug_core.plot(fc="none", ec="mediumblue", lw=2, transform=tran, ax=ax)
cs_rg.plot(fc="none", ec="red", lw=1.5, ls="--", transform=tran, ax=ax)
cs_ug.plot(fc="none", ec="firebrick", lw=2, zorder=3, transform=tran, ax=ax)
legend_handles = [
mpl.lines.Line2D([], [], color="royalblue", ls="--", lw=1.5, label="Regridded | cold-core polygons"),
mpl.lines.Line2D([], [], color="red", ls="--", lw=1.5, label="Regridded | CE polygons"),
mpl.lines.Line2D([], [], color="mediumblue", ls="-", lw=2, label="Native | cold-core polygons"),
mpl.lines.Line2D([], [], color="firebrick", ls="-", lw=2, label="Native | CE polygons"),
]
gl = ax.gridlines(draw_labels=True)
gl.top_labels = False
# ax.autoscale(tight=True)
ax.set_xlim(ax1.get_xlim()); ax.set_ylim(ax1.get_ylim())
fig.legend(handles=legend_handles, ncol=2, loc="lower right", bbox_to_anchor=[0, -0.09, 0.961, 1], frameon=False)
for a, ax in zip("abc", [ax1, ax2]):
ax.text(0.007, 0.98, a, weight="bold", size=14, va="top", ha="left", transform=ax.transAxes)
fig.savefig(f"mpas-ug-contours-and-vs-rg-ces_{stime}.pdf", bbox_inches="tight", pad_inches=0.05, transparent=False)
CPU times: user 1.62 s, sys: 56.5 ms, total: 1.67 s
Wall time: 2.24 s
Triangulations#
The above contouring is based on the Delauney triangulation. This connects the cell centers with straight lines to form triangles. But this triangulation doesn’t correspond to the MPAS mesh, per se.
MPAS-Tools, though, provides a method for dividing the mesh grid cells into triangles and interpolating data defined at cell centers (like OLR) to the triangle nodes. The triangle nodes include the cell centers (one per triangle) and the grid cell vertices (two per triangle). A hexagonal grid cell, e.g., is divided into 6 triangles, which all share the cell center as a node.
We compared the contourings from these two methods. For our intents and purposes (identifying CEs with area ≥ 4000 km²), the differences appear to be negligible. The mesh horizontal resolution is 15 km, which seems to be sufficiently high that the Delauney triangulation is a good approximation.
# Code

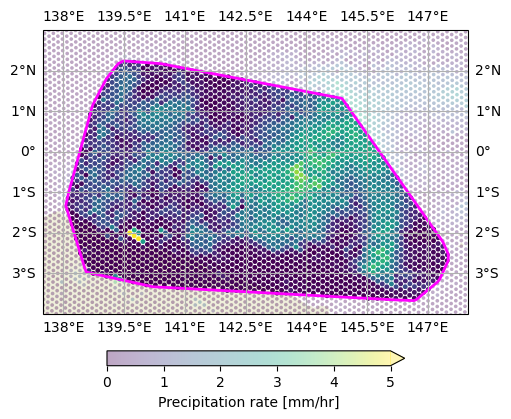

Precip inside CE#
This figure is intended to demonstrate what tams.data_in_contours() does.
ce = cs_ug.cx[138:145, -4:3]
assert len(ce) == 1, "just one CE"
fig, ax = plt.subplots(figsize=(5, 4), subplot_kw=dict(projection=proj), constrained_layout=True)
ax.gridlines(draw_labels=True)
ax.set_extent([137.5, 148, -4, 3], crs=tran)
ax.add_feature(cfeature.LAND)
# tcs = ax.tricontourf(tri, ds.tb.isel(time=itime), levels=20, cmap="viridis_r", transform=tran)
pr = ds.precip.isel(time=itime)
s = ax.scatter(pr.lon, pr.lat, c=pr,
ec="none", s=7,
cmap="viridis", vmin=0, vmax=5, alpha=0.35,
transform=tran,
)
within = (
gpd.GeoDataFrame({"pr": pr}, geometry=gpd.points_from_xy(pr.lon, pr.lat, crs=4326))
.sjoin(ce[["geometry"]], predicate="within", how="left")
.dropna(subset="index_right")
)
within.plot(ax=ax, column="pr", cmap="viridis", vmin=0, vmax=5, markersize=12, edgecolor="none")
ce.plot(ax=ax, fc="none", ec="magenta", lw=2)
# ce.set_geometry("cs219").plot(ax=ax, fc="none", ec="cyan", lw=1.5)
fig.colorbar(s, orientation="horizontal", extend="max", shrink=0.7, label="Precipitation rate [mm/hr]")
fig.savefig(f"mpas-ug-points-within-example_{stime}.png", dpi=200, bbox_inches="tight", pad_inches=0.05, transparent=False)
